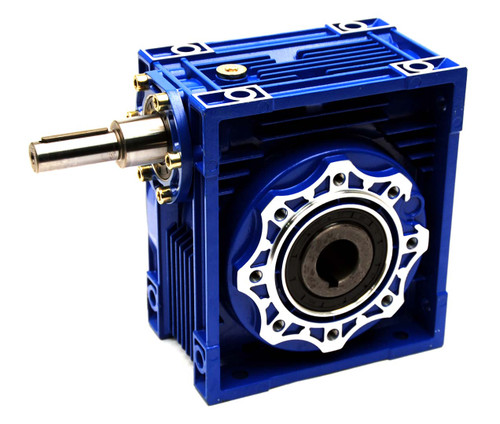

RV090 series worm gear coupled speed reducer.
This 80:1 ratio speed reducer is rated for 1.39 HP input at 1750 RPM on a 7/8" diameter x 3-1/2" long keyed shaft.
Output is 2522 lb/in on a hollow 1-3/8" diameter x 5-1/2" long keyed shaft.
High quality reducer has an all aluminum heat sinking designed housing with epoxy coating.
- Ratio:
- 80:1
- Input Shaft Diameter:
- 7/8
- Output Shaft Diameter:
- 1-3/8
- Mounting:
- Coupled
- Rated HP:
- 1.39
